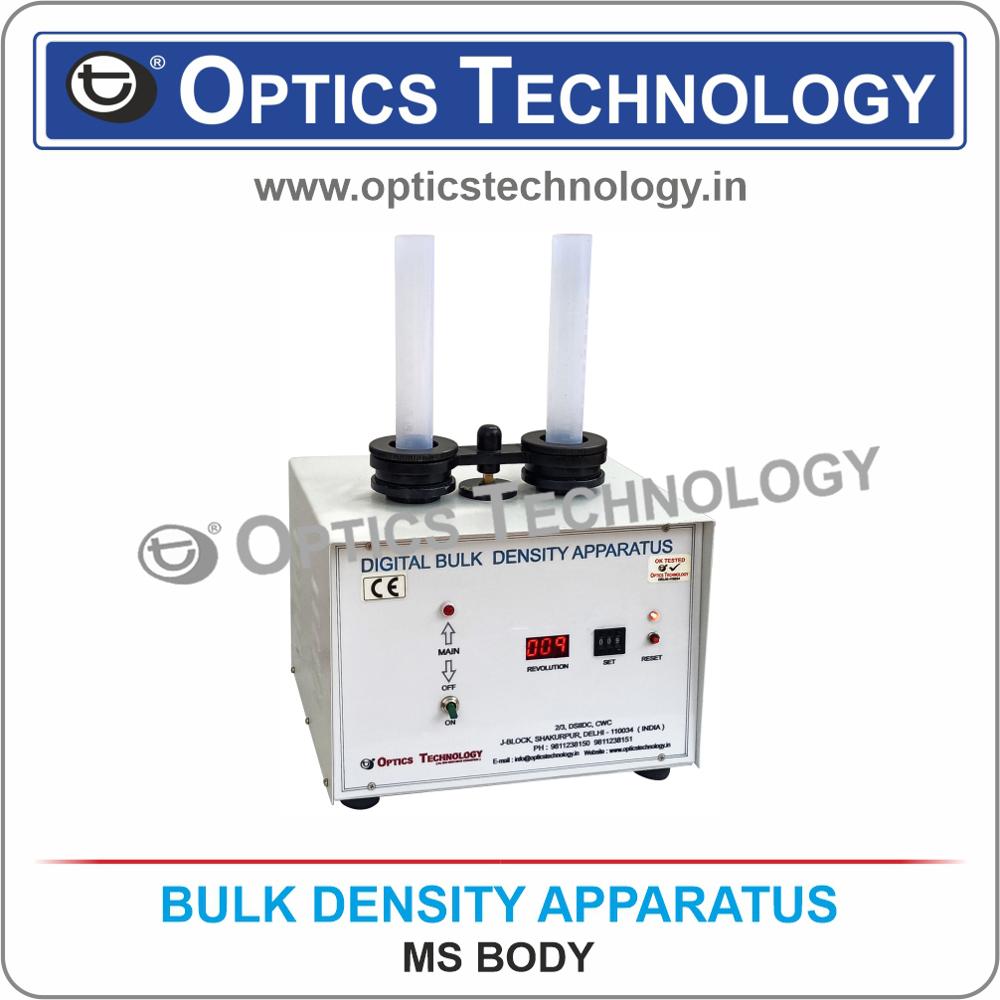

DIGITAL BULK DENSITY APPARATUS

Get a Price/Quote

MOQ : 1 Piece

DIGITAL BULK DENSITY APPARATUS Specification

Capacity
2 x 100 ml (Two 100 ml cylinders)

Accuracy
1% of reading

Automation Grade
Automatic

Core Components
Motorized drive, Digital timer, LED display, Two graduated cylinders

Frequency
50 Hz

Measurement Range
Up to 100 g sample

Feature
User programmable stroke and timer, Uniform tapping motion, Easy cylinder fixation

Temperature Range
Ambient

Power Source
230 V AC, 50 Hz

Model No
DBDA-01

Voltage
230 V AC

Equipment Materials
Stainless Steel body, Borosilicate Glass cylinders

Type
Digital Bulk Density Apparatus

Usage
For determining the bulk density and tapped density of powders and granules

Display Type
Digital LED display

Dimension (L*W*H)
360 x 250 x 450 mm

Weight
Approx. 8 kg

Compliance
Conforms to USP, IP, ASTM standards

Cabinet Finish
Powder coated

Timer Setting
Programmable up to 99 minutes

Cylinder Material
Borosilicate Glass

Tapping Height
25 ±2 mm

Number of Stations
Two (Dual station simultaneous operation)

Operating Mode
Continuous / Programmable

Noise Level
Low noise, <66 dB

Safety Features
Overload protection, Enclosed moving parts for user safety

Stroke Rate
300 strokes/minute

DIGITAL BULK DENSITY APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About DIGITAL BULK DENSITY APPARATUS

This instrument is used to check the density of powder.
Can Hold 2 No. cylinders, capacity : 100 ml.
Based on and tapping mechanism, User has to select the No. of stokes in the counter.
Three models are available as given below Meet USP Standards.

BODY IS MADE OF MILD STEEL DULY POWDER COATED / S.S. 304

Precision with Dual Station Operation

The DBDA-01 enables simultaneous testing with its dual-station design, enhancing productivity in busy laboratory settings. With two 100 ml borosilicate glass cylinders, users can analyze multiple samples under identical conditions. This efficient setup not only saves time but also allows comparative analysis, which is essential for quality control and research applications.

User-Friendly Programmable Features

Equipped with a digital LED display and programmable timer (up to 99 minutes), this apparatus allows precise control over operation cycles. Users can set custom tapping parameters, ensuring consistency and repeatability in bulk and tapped density measurements. The intuitive design simplifies workflow, making it suitable for both routine and specialized laboratory tasks.

Built for Safety and Compliance

Constructed with a powder-coated stainless steel body, the DBDA-01 provides durability and chemical resistance. Enclosed moving parts and overload protection help safeguard operators. Fully compliant with USP, IP, and ASTM standards, the apparatus assures accurate, standardized results, contributing to reliable data collection and adherence to industry regulations.

FAQ's of DIGITAL BULK DENSITY APPARATUS:

Q: How does the Dual Station Digital Bulk Density Apparatus operate?

A: The apparatus employs a motorized drive to deliver a uniform tapping motion at a rate of 300 strokes per minute. With two borosilicate glass cylinders, it allows simultaneous measurement of bulk and tapped density, offering efficient workflow for laboratory users.

Q: What are the main benefits of using this digital bulk density apparatus?

A: Key benefits include accurate and repeatable results (1% accuracy), dual-station operation for higher throughput, programmable timer and stroke settings, reliable safety features like overload protection, and compliance with international standards (USP, IP, ASTM).

Q: When should I use this apparatus in a laboratory setting?

A: Use the Digital Bulk Density Apparatus when precise bulk and tapped density measurements of powders or granules are required, such as during quality control, raw material testing, or research and development in pharmaceutical, food, and chemical laboratories.

Q: Where can the Digital Bulk Density Apparatus be installed?

A: With compact dimensions (360 x 250 x 450 mm) and a manageable weight (approx. 8 kg), the apparatus is suitable for benchtop installation in laboratories. Its low noise operation (<66 dB) makes it ideal for both research and production environments.

Q: What safety features are included in this equipment?

A: The apparatus incorporates overload protection and fully enclosed moving parts, significantly reducing user risk during operation. Its robust stainless steel body and powder-coated finish also enhance durability and operator safety.

Q: How is the programmable timer and stroke setting used in this model?

A: Operators can set the timer for up to 99 minutes and adjust stroke parameters via the digital LED display, allowing customized testing cycles tailored to specific sample requirements and standard protocols.

Q: What materials are compatible with the apparatus, and what is its measurement range?

A: The apparatus is designed for powders and granules, accommodating up to 100 grams of sample per cylinder. Its borosilicate glass cylinders ensure chemical compatibility and easy cleaning between tests.
