ROTARY VACUUM EVAPORATOR

About ROTARY VACUUM EVAPORATOR

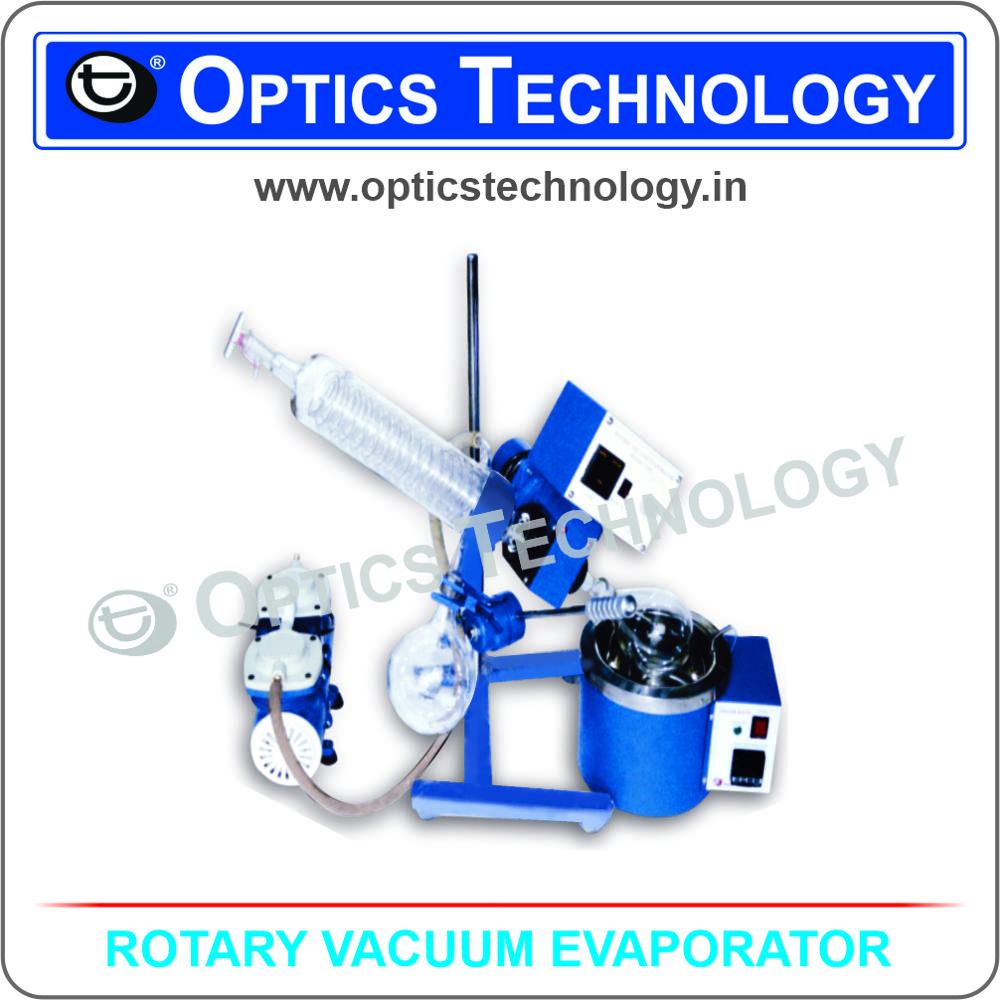

The apparatus consists of an evaporating flask by DC motor in a heating water bath. Vacuum Distillation of solvent at high and low temperature is achieved quickly and efficiently by use of a variable speed motor, which prevents foaming and bumping of the liquid (solvent) into the evaporating flask and also distillation under controlled atmosphere. The evaporating flask is pear shaped to give a large surface area of evaporation and is clamped to a glass duct, which goes through the drive unit and produced into the condenser. The condenser is fitted with standard joint at the top and the bottom for receiver flask the unit is fitted with quick action.

Optional:

1. Water Bath ThermostaticORWater Bath Microprocessor Based PID Controller
2. Vacuum Pump (Oil Free Diaphragm Type)
3. Digital RPM Indicator
4. Micro Attachment Set

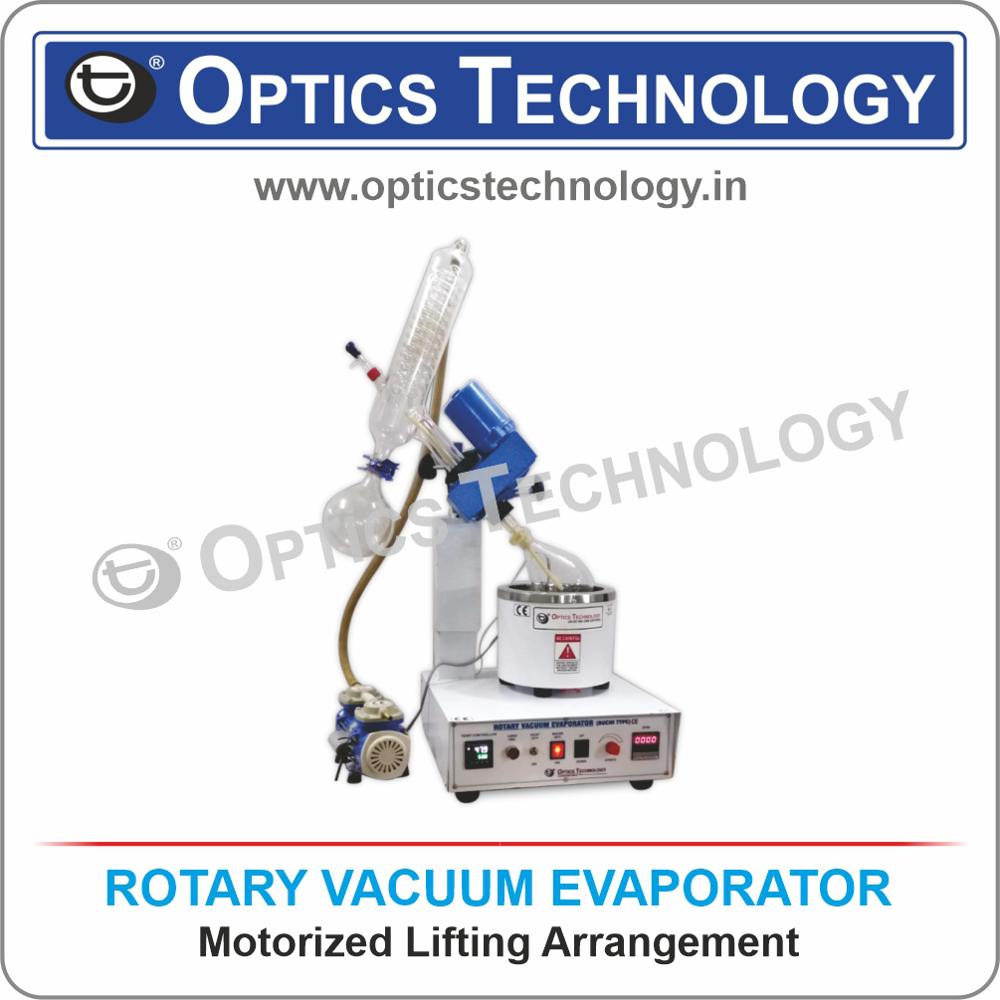

5. Automatic Motorized Lifting Arrangement
6. Chemical Resistance Vacuum Pump (Oil Free)
7. Cooling Water Bath (Chiller Circulator) PID Controller (M.S. Body)/Cooling Water Bath (Chiller Circulator) PID Controller (S.S. 304)

NOTE:
Temperature Range (Water Bath) : Max. 100C
Temperature Accuracy : 1C

Only available with Water Bath Thermostat / Digital Model
